The basic principle of Compact spinning yarn

Principle of Compact spinning yarn is in the original traditional ring spinning frame of draft apparatus area to add a flow gathering agencies, make the fiber article must Laura jaw output once upon a time, a special circle of grid using negative pressure suction slot and the above the fiber of airflow to gather the drafting area, decrease the spinning triangle, further control of floating fibers, thus greatly reducing yarn hairiness, yarn end breakage declined obviously, make the spun yarn finish high, good evenness, high strength, less yarn defects.

Scope of application of Compact spinning

1, form a complete set of new and old machine transformation of domestic spinning frame

2, imported frame and old machine modification, such as the Swiss rieter G1/5 frame, etc.;

3, suitable cradle for: shake frame, spring cradle and SKF cradle, such as:

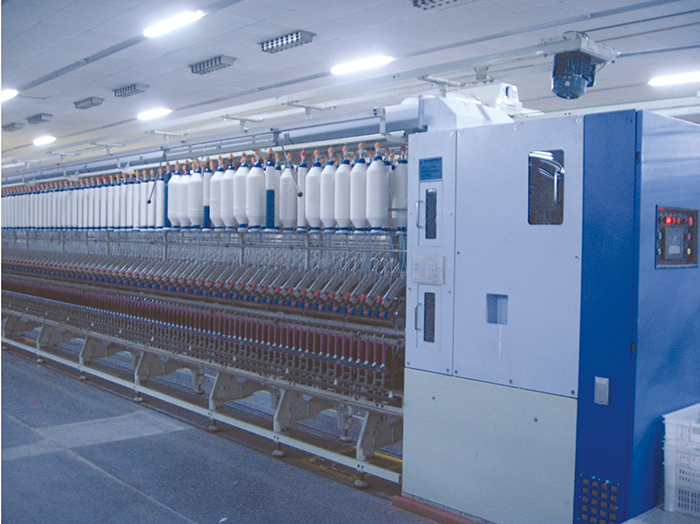

At present our company has successfully transformed nearly more than 150 pounds of Compact spinning, has accumulated rich experience in the reform, in order to adapt to the market, to assist the transformation enterprises save investment cost, for the most part we for domestic spinning frame can for modification of old and new. Through the test, yarn quality equivalent to that of imports of Compact spinning, and renovation costs will be greatly reduced.

In transforming a process, we will give full consideration to the customer have put forward various reasonable requirements, and answer and solve the problems put forward by the user at any time. Warmly welcome new and old customers to our work and service the most treasure of opinions. We will carefully humbly to rectification. Finally achieve the goal of win-win.

	Main component parts of the Compact spinning apparatus 1, the roller (gearbox) binder Using the original spinning frame cradle, combining with the modified parts (gear box) to achieve Compact spinning yarn technology requirements.

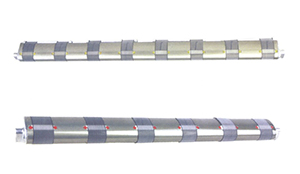

2, air gathered different negative pressure pipe Negative pressure pipe surface through special processing, through the negative pressure principle, total duct with role down the grid ring spinning effect.

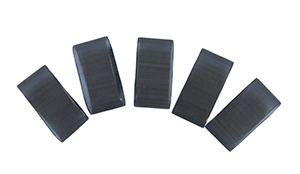

	3, grid ring Grid ring is indispensable to one of the main parts of Compact spinning yarn, our company adopts the grid is the grid structure of the domestic newest times, using a special imported materials, it has high tensile strength, small resistance during operation, long service life, etc.

The main characteristics of Compact spinning modified products：

Due to the use of the Compact spinning yarn technology, compared with the traditional spinning, advantage in the following aspects:

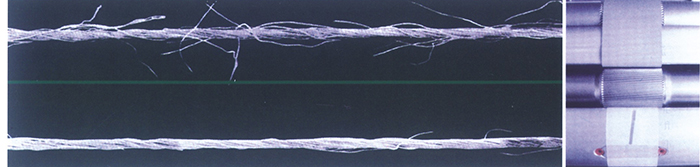

1, yarn closer is bright and clean. Yarn hairiness significantly reduced, more than 3 mm cop hairiness can reduce 60%;

2, strong than normal ring spinning increased by 10% - 15%;

The CV % 3, it is better than common yarn;

4, can be produced with lower levels of raw materials and traditional ring spinning ring spun yarn or of the same quality with the same raw material can be produced more yarn of high quality and high yield;

5, significantly lower end breakage rate, yield increased significantly. The operator labor intensity decreased obviously, fly decreased significantly. Enterprise cost down.
